Prime Seating

Prime Seating TC600 Series

(7 reviews) Write a Review
SKU:
TC600
MPN:
TC600
Availability:
Grey is in stock. Black available Nov 2024 (pre order now)
Shipping:
$199.00 (Fixed Shipping Cost)

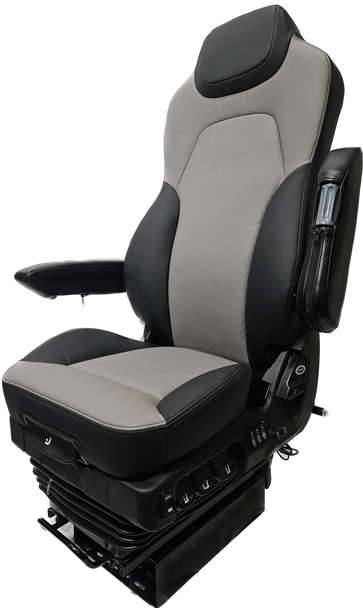

  • Prime 600LGR
  • Prime 600LBK
  • Prime 600LGR front view
  • Prime 600LGR left side view
  • Prime 600LGR right side view
  • Prime 600LGR Back
  • Prime Seating 600L side controls
  • Standard Profile and Low Profile base Options
  • Prime Seating TC600 Series
Your Price: $1,499.00

Description

Reserve while you can!!

Your Dream Seat is now available from “Prime Seating”. “Prime TC600LBK” has all the functions and features you are dreaming about. One of key feature on Prime TC600LBK model is “Cool Air Ventilation System “, which gives you cool air throughout your body ( Backrest & Bottom Cushion ). This makes you dry and cool your body all day long while you drive. Another important feature is “Quick Down Feather”. It makes you easy in / out convenience.

Additional charges for residential shipments and shipments to Canada (customs broker and duty assessed to customer directly)

The Prime TC600LBK has 2 base options - Standard* and Low Profile**

* Standard mounting bracket base : 4 and 1/4”
** Low Profile Mounting bracket base : 1 and 1/2”

MADE IN S. KOREA

FUNCTIONS AND FEATURES

1. Air Height Adjustment (3″ up and down for a total of 6")

2. Lower Air Lumbar Support

3. Upper Air Lumbar Support

4. Side Air Bolster Support ( Both Sides )

5. Fore & Aft Slide Adjustment ( Total Travel 7.5" )

6. High Back Profile Backrest

7. Seat Cushion Extension ( 5 different Length Adjustments )

8. Seat Tilt Adjustment ( 5 Different Tilting Positions )

9. Adjustable Shock Absorber (Soft to Hard )

10. Upholstery – Black Genuine Leather ( Premium Grade Natural Leather )

11. Dual Black Comfort Cushion Arm Rests

12. Adjustable Arm Rest ( Both Sides )

13. 12V Heating Seat ( Bottom and Back / 3 level setting )

14. Memory Height Adjustment ( Memorize Driver’s Weight and Automatic Adjustment to Previous Set Position )

15. Fully Reclining Backrest ( Almost Flat )

16. Quick Release Button ( Dump and Refill air with one button push in / out )

17. 12v Cool Air Ventilation System ( Cool Air throughout Seat / 3 level setting )

18. Low Rider Capability.

Note: Compare to National Admiral CT in Real Leather (approx. $1638)


Click on picture to expand for better visibility of dimensions

Prime seats come with a riser that can be easily removed to make a lower profile seat with a bolt pattern of 11" x 8.25".  This lowers the seat 4.25" and makes the hip point 9" without air and 15" with full air.  Or the standard bracket can be replaced with the Low Profile Bracket to decrease the height by 2.25".

All bracket have the folowing bolt patterns:
  • 13 1/2 ” x 6″
  • 12″ x 6″
  • 10 1/2″ x 6″
  • 11″ x 8 1/2″
  • 7 1/2″ x 5″



Application Chart



View AllClose

Warranty Information

Prime Seating offers an industry leading warranty up to 3 years for parts and 1 year of Labor which includes covers (both leather and cloth) as well. Every Prime Seat has passed all required FMVSS ( Federal Motor Vehicle Safety Standard ) regulations. - FMVSS 302 : Flammability of material used in the occupant compartments of motor vehicle - FMV22 207 : Evaluates the strength of the seat in a frontal crash - FMVSS 210 : Seat Belt Assembly Anchorages.
View AllClose

Additional Information

Cushion Height:
13.5"-20.5" with 4.25" riser that can be removed with 4 easy bolts
Cushion Width:
21"
Base Features:
Adjustable Arms, Genuine Leather, cushion extension & tilting, adjustable shocks, 12v Heat, Air ventilation/cooling, auto-leveling, quick down release.
Options:
None
View AllClose

7 Reviews

  • 4
    TC600.

    Posted by Grant Van Dyk on Feb 14th 2024

    The seats are everything they said they would be. They are comfortable and were easy to install. The ventilation and heat work well although they are a little firm I believe they have to be in order for the ventilation to work correctly. My one complaint would be is that the two seats aren’t mirrored and both seats have their controls on the left side. In my application this makes access to the passenger seat controls difficult.

  • 5
    Seat does everything anyone would want

    Posted by Edgar T Smith Jr on Oct 23rd 2020

    Excellent seat have had one for 3 yrears just ordered another one for other Truick

  • 5
    Very Satisfied with purchas thus far

    Posted by Chris on Mar 8th 2016

    Bought a 600L for my motorhome. I have a 40' Diesel Pusher motorhome that has stock cushy lazy-boy style seats. They are comfy to relax in, horrible to drive in. Needed more support and adjustability. I bought the 4" seat base with seat but ended up not using it. I was able to modify the existing seat base which offered a swivel function so you can easily get in and out. I used the air tap that is used in emergency towing situations (to inflate air bags) and the existing 12V. Seat is of a very high quality. Very supportive with good bolster and good lumbar bags (multiple). I found the suspension damper to work well and have a good range. The air circulation system is BY FAR the most powerful I have ever felt in any seat I have used (I have multiple cars with this feature). On high it is loud, but is very powerful. Do run the seat exhaust hose out of cab, very loud otherwise. Others mentioned the arm rests were too low. My previous ones were too high. I am tall and found I was able to get a comfortable arm rest position with the ones on the Prime. All said, I have very few miles on seat. I will check in later this year after a few very long trips. I am very satisfied thus far thou, and would recommend this seat to anyone. I am 6'4", 225 lb.

  • 4
    Prime 600L

    Posted by Gary Ross on Feb 1st 2015

    I have had the seat for 2 weeks, like the way it rides and all the options it has, bottom cushion is a little hard but I think it will soften up over time. I bought it with the low base for my 2013 Mack CXU 613 and it will not work because the seat will not slide all the way back it runs into the rise between cab and sleeper, had to raise it 2" to make it work so if you have a Mack buy the tall base. The arm rests are way to low, you have to crank them way up then your arms only rest on the tips of arm rests but very easy to raise them up by making brackets 4" taller, just a matter of drilling 4 holes in some 1/4" plate, bolting plate to seat then bolting arm rests to plate. Mack cabs are a little narrow so left arm rest hit the door a little bit but I fixed that problem by taking metal bracket off of arm rests and using a big hammer and anvil flattening it out straight taking out the 1/2" to 1" bend in the metal, now they clear the door fine. Overall I tike the seat and would recommend it to anyone.

  • 4
    I love this seat

    Posted by Ken Stewart on Jan 28th 2015

    I am 6'7" tall and 280 pounds so a good seat is a challenge for me and I have tried many. I must say that aside from hating the auto drop and rise when you get on and off of the seat that this is hands down the best seat that I ever owned. I too did the test ride on the Bose seat and yes it's surely the best, but $5000.00 for a seat.......I don't think so. Bottom line, I highly recommend the 600L to anyone who needs a comfortable quality seat.

  • 3
    BUILT SOLID!

    Posted by Kevin on May 3rd 2013

    Cons: arm rests mounted four inches too low to be of any use, not real cushiony to allow for cool air flow I assume, lowest shock setting is still a little stiff, seat bottom doesn't pull out far enough, seat sits at back of oscillation movement instead of middle, when airing seat up you need to press button before you get in truck or take weight off for a second or two or else it won't air up, exhaust hose is noisy if not vented outside. Pros: Heat and air works great, easy install, smooth ride, seems to be quality built to last,definately better than my factory seat was, nice and wide, auto ride height is awesome, ordered sunday night and it was delivered by friday!

  • 5
    Great Price

    Posted by Bob on Mar 14th 2013

    I was in the market for a set of seats and came up to the Bose tuned ride seats or what ever they was called. They was giving demo mock up simulation of a real rough rode and these things were smoother riding than a Cadillac.While I was sitting in the seat I ask the man how much $9800 dollars he said I just looked at him for a couple of minutes waiting for the punchline.Then he said they would throw in free install,My wife ask him if $9800 was for the pair he say no that's each. they might be good seats but that's crazy. I ended up buying a set of these prime seats leather air lumbar and heated pretty nice seats!!!
